How to implement an AbstractMaterial

In this tutorial, we show how a subtype of AbstractMaterial can be implemented, specifically we demonstrate the simple case of a viscoelastic material according to the Zener model, illustrated by the following rheological model.

zener model rheology

For this model, we then have the stress,

\[\begin{align*} \boldsymbol{\sigma} &= K\mathrm{tr}(\epsilon)\boldsymbol{I} + \boldsymbol{\sigma}^\mathrm{dev} \\ \boldsymbol{\sigma}^\mathrm{dev} &= 2 G_0 \boldsymbol{\epsilon}^\mathrm{dev} + 2 G_1 \boldsymbol{\epsilon}_\mathrm{e}^\mathrm{dev} \\ \boldsymbol{\epsilon}_\mathrm{e}^\mathrm{dev} &= \boldsymbol{\epsilon}^\mathrm{dev} - \boldsymbol{\epsilon}_\mathrm{v}^\mathrm{dev} \end{align*}\]

The stress depends on the viscous strain, $\boldsymbol{\epsilon}_\mathrm{v}^\mathrm{dev}$, which is goverened by the evolution law,

\[\dot{\boldsymbol{\epsilon}}_\mathrm{v}^\mathrm{dev} = \frac{G_1}{\eta_1} \boldsymbol{\epsilon}_\mathrm{e}^\mathrm{dev}\]

We will implement this using the Backward-Euler time integration, such that we have

\[\boldsymbol{\epsilon}_\mathrm{v}^\mathrm{dev} = \frac{{}^\mathrm{old}\boldsymbol{\epsilon}_\mathrm{v}^\mathrm{dev} + \Delta t \frac{G_1}{\eta_1} \boldsymbol{\epsilon}^\mathrm{dev}}{1 + \Delta t \frac{G_1}{\eta_1}}\]

Where we will save the viscous strain as a state variable.

Basic implementation and usage

In order to define the material, we start by defining a material struct, which subtypes AbstractMaterial,

using MaterialModelsBase, Tensors

@kwdef struct Zener{T} <: AbstractMaterial
    K::T    # Bulk modulus
    G0::T   # Long-term shear modulus
    G1::T   # Shear modulus in viscous chain
    η1::T   # Viscosity in viscous chain
end

Next, we define the state struct as well as the initial_material_state function,

struct ZenerState{T} <: AbstractMaterialState
    ϵv::SymmetricTensor{2,3,T,6}
end
MaterialModelsBase.initial_material_state(::Zener) = ZenerState(zero(SymmetricTensor{2,3}))

Before we define some helper functions and the material_response function,

function calculate_viscous_strain(m::Zener, ϵ, old::ZenerState, Δt)
    return (old.ϵv + (Δt * m.G1 / m.η1) * dev(ϵ)) / (1 + Δt * m.G1 / m.η1)
end

function calculate_stress(m::Zener, ϵ, old::ZenerState, Δt)
    ϵv = calculate_viscous_strain(m, ϵ, old, Δt)
    return 3 * m.K * vol(ϵ) + 2 * m.G0 * dev(ϵ) + 2 * m.G1 * (dev(ϵ) - ϵv)
end

function MaterialModelsBase.material_response(m::Zener, ϵ, old::ZenerState, Δt, cache, extras)
    dσdϵ, σ = gradient(e -> calculate_stress(m, e, old, Δt), ϵ, :all)
    ϵv = calculate_viscous_strain(m, ϵ, old, Δt)
    return σ, dσdϵ, ZenerState(ϵv)
end

The main reason for defining the helper functions is to facilitate differentiating the stress wrt. the strain input, and to avoid repeating code implementations.

Using the implementation

After having defined the basic implementation, we can use it to simulate the stress-strain response. We will simulate the case of uniaxial stress, implying that all components of the stress, $\boldsymbol{\sigma}$, is zero, except the 11 component. However, in the implementation above, we only control the strain input, but all strain components, except the 11 component, are unknown in the case of uniaxial stress. Therefore, we will use the UniaxialStress stress state, to simulate a ramp of $\epsilon_{11}$, followed by a hold time.

We start by defining a function to calculate the uniaxial material response for any material following the MaterialModelsBase interface, given a time and strain history vector:

function simulate_uniaxial(m::AbstractMaterial, ϵ11_history, time_history)
    state = initial_material_state(m)
    cache = allocate_material_cache(m)
    stress_state = UniaxialStress()
    σ11_history = zero(ϵ11_history)
    for i in eachindex(ϵ11_history, time_history)[2:end]
        Δt = time_history[i] - time_history[i-1]
        ϵ = SymmetricTensor{2,1}((ϵ11_history[i],))
        σ, dσdϵ, state = material_response(stress_state, m, ϵ, state, Δt, cache)
        σ11_history[i] = σ[1,1]
    end
    return σ11_history
end

Next, we define the material properties and load case

zener_material = Zener(;K = 100.0, G0 = 20.0, G1 = 30.0, η1 = 10.0) # Define material
ϵmax = 0.1  # Maximum strain value
tramp = 0.1 # Ramping time [s]
thold = 0.9 # Hold time [s]
nramp = 20  # Number of steps during ramp
nhold = 40  # Number of steps during hold

# Create the time history
t_history = collect(range(0, tramp, nramp + 1)) # Uniform ramp
append!(t_history, tramp .+ thold * range(0, 1, nhold + 1)[2:end] .^ 2) # Nonuniform hold

# Create the strain history
ϵ_history = collect(range(0, ϵmax, nramp + 1))
append!(ϵ_history, range(ϵmax, ϵmax, nhold + 1)[2:end])

The nonuniform time steps make sense in this case to capture the fast relaxation after the ramp, but is not required and we could instead use more uniformly spaced time steps to get the same accuracy. First, we simply plot the loading case we supply to see this,

import CairoMakie as Plt
fig1 = Plt.Figure(;size = (600, 300))
ax1 = Plt.Axis(fig1[1,1]; xlabel = "time [s]", ylabel = "ϵ₁₁ [%]")
Plt.scatter!(ax1, t_history, 100 * ϵ_history)

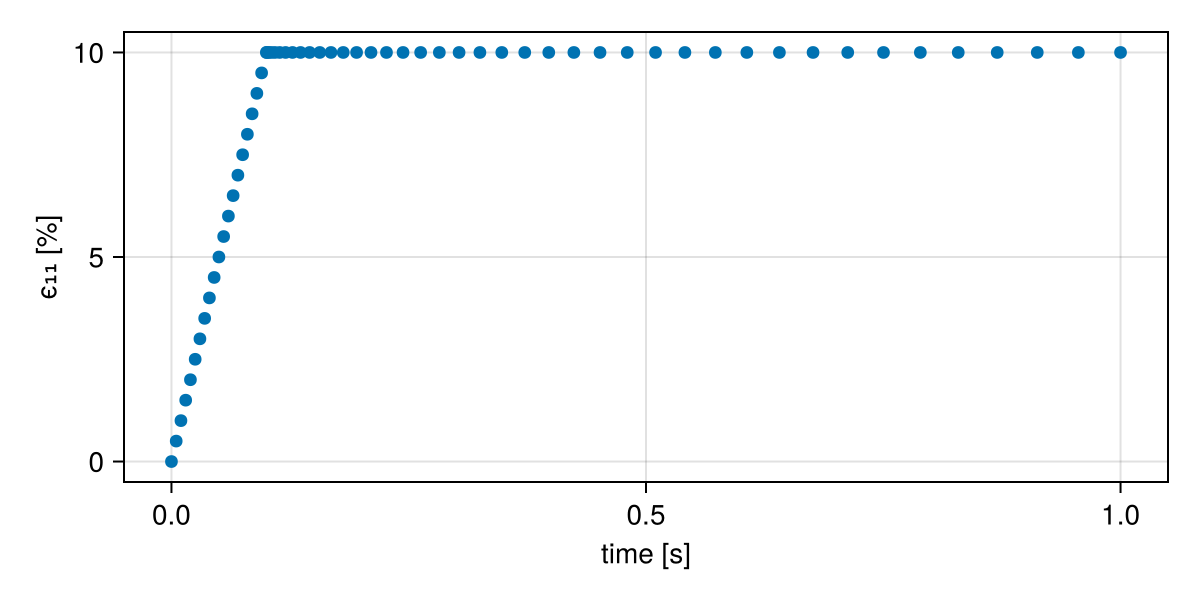

fig1
Example block output

We are now ready to simulate the response,

σ_history = simulate_uniaxial(zener_material, ϵ_history, t_history)

and plot it,

fig2 = Plt.Figure(;size = (600, 300))
ax2 = Plt.Axis(fig2[1,1]; xlabel = "time [s]", ylabel = "σ₁₁ [MPa]")
Plt.lines!(ax2, t_history, σ_history)

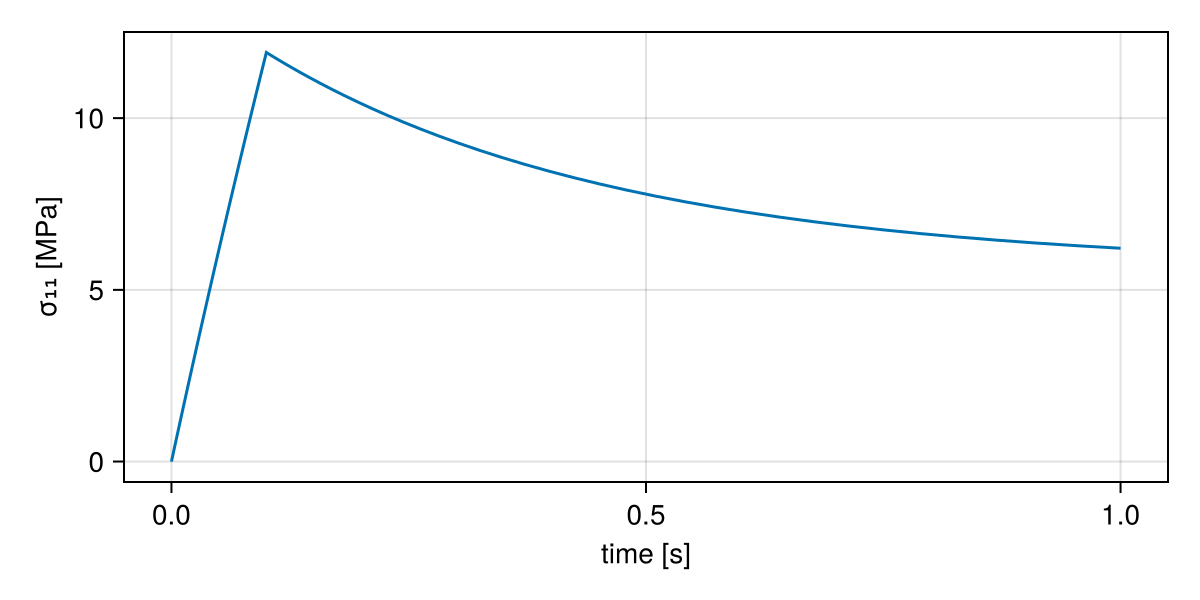

fig2
Example block output
